Commercial Reverse Osmosis Systems Designed, Engineered & Assembled in the USA

Commercial Reverse Osmosis Systems

Commercial Water Reverse Osmosis

We offer custom reverse osmosis water filtration solutions. Not just "one size fits all"

Business RO Systems can be custom built to your specifications, unmatched value in quality and reliability, and include a multitude of standard features that most of our competitors list as options at a higher cost.

Why a commercial reverse osmosis system from RainDance Water Systems? Because we can customize absolutely everything tailored to the customer's water chemistry and ambient operating conditions. A unit for Australia will be significantly different from one sent to Texas or California. If your application requires water treatment please use our hassle free online quote form or choose from our most popular cost effective, user friendly commercial reverse osmosis systems listed below.

Business to Business Discounts available on all compact 15,000gpd & 20,000gpd reverse osmosis water purification systems. CONTACT US for a quote today.

We have provided numerous business's from manufacturers to food & beverage to agriculture versions of integrated ro systems. Their specifications can vary widely from one system to the next so we almost always quote individually based on their requirements. The systems described below are more standardized and based on typical tap or well water conditions.

Our most popular TV RO Series offer several unique features such as: High efficiency, high recovery, high rejection - water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed, microprocessor controller, lower operating pressure (150 psi-200 psi) - durable rust-proof frames (stainless steel) - stainless steel membrane housings - complete test report on each system. Note: RO performance will vary depending on feed water characteristics.

Quality service and support after your TSM, TV, TH reverse osmosis purchase. All water treatment systems are designed with ease of installation in mind. We offer Direct technical and installation support for all you do-it-yourselfers, plumbers, and contractors. Our tech support team consists of qualified personnel who build and engineer each water treatment product before we ship it to your home or business.

Customer Assurance - RainDance Water Systems has become a stable and reliable name in the water treatment industry. We take great measures to assure our customers the best quality, dependability, service, and reliability. Why RainDance Water Systems? We offer the following:

  • Member Ramona Chamber Of Commerce
  • Extensive customer list
  • Secure online ordering or call toll free 1-877-788-8387
  • We know reverse osmosis! Quality Equipment - Knowledge - Superior Customer Service
  • Free shipping on most systems (continental US) - Overseas exporting available.

Our customers include numerous residential households on well and city water sources, commercial applications, business facilities and farms throughout the United States, Venezuela, Spain, Africa, Canada, Japan, U.K., Bahamas, Cayman Islands, Indonesia, Taiwan, Singapore, Kabul, Afghanistan, and Malaysia.

A small sample of our commercial water systems customer database includes: Happy Cow Creamery, Safeway Ice Cream, Global Food Technologies, Harvest Food Group, Earthbound Farms, Affinity Flavors, Old Country Vineyards, Fairbanks Farms, Golden Eagle Thoroughbred Horse Farm, Buckridge Plantation and Horse Stables, San Diego State University, Arizona State University, Palomar College, Cornell University, Indiana University of Pennsylvania, Days Inn Arizona, Aquafauna Bio-Marine Inc., Alaska Clean Seas, Aquatic Exhibits International, Washington St. National Park Service, Miasole, Trico Products Corporation, Snake River Power Plant, South Placer Municipal Utility District, Berkley Surgical Corporation, Abengoa Energy of NE, Advanced Marine PTE., Quinlan Texas Elementary School, Hunter Industries, Sonance Corp., Sunex International, Owens Brigam Medical, 1st Choice GMAC Realty, Century 21 Realty, Coldwell Banker Realty, Austin Productions, Fairfield Country Club, Auer Precision Inc., Deer Park Monastery, Oral Bio Tech, Tesla Industries, Ferguson Enterprises, The U.S. Army, U.S. Air Force, Northrop Grumman, Boeing, Anadarko, The U.S. Environmental Protection Agency (EPA), The U.S. Fish and Wildlife Federation, The United States Coast Guard, Federal Aviation Administration, U,S. Postal Service, Lockheed Martin, Gaffney-Kroese Supply Corp, Just to name a few.

Quality Assurance: Our engineers have held to the goal of over build and over design.  That is why we are constantly surprised at how long the membranes last in our systems and how few calls we get about premature pump or other system failures.  It's also why we primarily use stainless steel in our structures instead of aluminum or powder coated mild steel on most of our systems.  It costs a bit more but the benefits in durability and reliability are well worth it! Let RainDance Water Systems provide your company with a long lasting membrane water purification solution.

Skid Mount Turnkey Reverse Osmosis Business Package: Limited Time Special Offer

RO Water Purification Package Includes:

On Skid: Choose Your RO System Capacity: 2000gpd, 4000gpd, 6000gpd, 8000gpd 10000 or 12000gpd

On Skid: Automatic Self-Cleaning Carbon Chlorine Removal Pre-Filter

On Skid: Sediment Pre-Filter Cartridge

On Skid: UV Light for disinfection of feed water to inhibit bacteria/bio fouling

On Skid: Anti-Scalant Injection increases membrane life by reducing hard water scaling and fouling typical of city treated water

On Skid: Delivery/Pressure Pump - Draws water from the 300gal storage tank to your application

Off Skid: 300 gallon Storage Tank - We can also quote without storage tank upon request

Integrated Skid is Pre-Plumed & Pre-Wired - We can accommodate overseas power requirements upon request

  Includes *5 Year Consumable Package

*5 year Replacement Pre-Filter Package: Includes 15 replacement pre-filters *5 year supply of filters when replaced every 4 months

*5 Year Replacement UV Bulb Package: Includes 5 replacement uv bulbs *5 years supply of bulbs when replaced every 12 months

*Some applications may require a more frequent replacement interval.

Free Shipping within the Continental USA

  Email Us: raindancewater@consultant.com - Attn: RO Skid Special



Water Filter Quote

RainDance Water Systems Fully Integrated Compact Skid Reverse Osmosis Station

Fully Customizable To Fit Your Water All-In-One Skid Mount Water Filtration System


(appearances may vary, 300gal. storage tank included, but not shown)

WE INVITE COMPARISONS TO ANYTHING ON THE MARKET!

The RDWS-TV-RO Make-Up Water Skid Series is a complete reverse osmosis water system, pre-assembled and shipped on a single skid for quick and easy installation and start-up. The system consists of hard water & silica pretreatment, carbon chlorine & organic chemicals pretreatment (for city water applications) or can be customized with iron and manganese well water pretreatment, uv bacteria disinfection, re-pressure delivery pump, high capacity reverse osmosis (RO) unit, and off-skid 300 gallon storage tank. The RDWS-TV-RO Make-Up Water Series is pre-engineered allowing quick assembly and delivery. With simple utility connections and pretreatment set up, the system is virtually ready for on-line service, saving customers both time and money

*Without pretreatment the ro system can become fouled and damaged causing you more expense, time, and headaches. We include the necessary pretreatment pre-plumbed on the skid.

RDWS-Skid-RO Series are preplumbed and prewired in most cases with one inlet connection, one drain connection, one water use connection, and in most cases one electrical connection to allow for fast hassle free installation. From the delivery of the equipment to your facility to the set up and use of water - In hours not days!

 Complete All-In-One Skid Reverse Osmosis System Applications Include:

Agriculture

Livestock

Green Houses, Orchards, Groves

Food, Ice, Produce, and Beverage Industry

Bottled Water Stores

Pharmaceutical

Electronic Industry

Process Water

Chemical Industry

Electroplating Industry

Electrical Power Generating

Polymer Solutions, Manufacturing, Business and more.

RainDance Water Systems Pre-Plumb & Wired

 Integrated TV-RO Skid Series Standard Features

Fully Customizable For Both City & Well Water Sources

  • All components (excluding storage tank) located and contained on our skid mount platform with wheels - for easy positioning.
  • Approx. Weight & Skid Dimensions: 51"W x 32"H x 63"H / Estimated Dry Weight 500lbs (2,000gpd -4,000gpd)
  • Approx. Weight & Skid Dimensions: 58"W x 37"H x 63"H / Estimated Dry Weight 750lbs (6,000gpd -12,000gpd)
  • Includes on skid Single point power connection for 220V, 60 Hz, 1-Phase power. <Custom and Overseas power connections available>
  • Includes on skid (NO-Salt Discharge) Hard Water Treatment antiscalant feed system - Pretreats and protects the membrane from hard water scale, silica and highly mineralized water. Antiscalant hard water pretreatment method is preferable to salt based water softeners as it has more mineral pretreatment capabilities, no drain line waste water, lower maintenance, no salt pellets required, no salt discharge, economical, and is perfect for areas of the country that have chloride discharge limits. The antiscalant formulation has been certified by the National Sanitation Foundation (NSF) under ANSI/NSF Standard 60 for use in producing potable water.
  • Includes on skid digital automatic *"No-Maintenance" well water iron, manganese, hydrogen sulfide gas, and suspended solids pretreatment system or substitute our *"No-Maintenance" chlorine removal system for city water sources. *No maintenance refers to automatic backwashing capabilities and no routine media replacement required - media can last 5-10 years.
  • Includes on skid Pretreatment lock-out switch and manual bypass included for automatic backwashing systems.
  • Includes on skid Automatic Flush on start up - Fast clean-flushes membrane each time the unit starts.
  • Includes on skid microprocessor based controller - Controller includes digital product water conductivity indicator, Controller monitors feed water pressure, pump output pressure, product water conductivity, product water storage tank level and performs membrane flush on startup. Low feed pressure, high pump pressure and high product water conductivity result in alarm state indications. System control panel includes prefilter in and out pressure gauges, pressure vessel in and out pressure gauges, product water flow meter, recirc. flow meter with control valve and concentrate flow meter with control valve."Perfect for serviceman or do it yourselfer."
  • Includes on skid "Low Energy" High Rejection Membranes in Stainless Steel Pressure Vessel(s)
  • Includes additional testing monitor - Portable waterproof tester offers high accuracy electrical conductivity (EC), total dissolved solids (TDS) and temperature measurements in a single tester. Allows you to test untreated and post treated water.
  • Includes 1- 35" dia. x 81" ht. 300 gallon storage tank. For ease of handling and ability to get through doors we use a multiple array of tanks. Product water storage tank is green, with 16" manway, 2" bottom inlet/outlet (bushed to 1.25"). Two ea. Pump Up float switches installed in tank.
  • Includes on skid 10gpm @ 48psi fully automatic electric pump (constant pressure) re-pressure system - Draws water out of the storage tank. Pump has integral switch for 40/60 psi output control and integral low feed water protection shutdown.
  • Includes on skid chemical free ultraviolet UV disinfection system. UV Sterilizer for disinfection of feed water to inhibit bio fouling of R.O. membranes.
  • Each skid mount reverse osmosis is fully assembled and tested before it leaves the plant.
  • For optimum Skid RO Series performance customers must have at least 7gpm @ 30psi available. Note: Our Skid RO Series contains complete pretreatment for chlorine and hard water (calcium) typically associated with municipal water sources. If Skid RO is to be used on well water we offer the following guidelines: Operating Parameters: Max TDS-5000ppm, Total iron is less than 10ppm, Manganese is less than 3ppm, H2S less than 10ppm, Water hardness below 250gpg, pH 6.5 -8.5, No iron bacteria. Calculations of production capabilities are based on a feed water temperature of 60 Deg. F. Lower temperatures may result in slightly lower production levels.
  • Unlike most companies , we are able to tailor our Skid RO systems to your needs. To ensure the longest trouble free system life and best possible treated water quality, we encourage you to fax (760-896-6999) or E-mail your water chemistry report or let us know the name of your municipal water district provider. You may also send us a water sample for evaluation.
  • FREE WOOD CRATING FOR SKID TO ASSURE SAFE DELIVERY.
  • FREE SHIPPING ON ALL RO SKID REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
  • OVERSEAS SHIPPING AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP

 RDWS-TV-RO-Skid Reverse Osmosis Systems Selection & Pricing

Skid RO Units Can Also Be Quoted Without Storage Tank & Re-pressure Pump

 Model #

 Description

 Price

  RDWS-TV-RO-SKID-2000

 Complete skid mount 2000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank

Contact Us For Current Price

 Need A Quote ? Click Here For Same Day Quoting

   RDWS-TV-RO-SKID-4000

 Complete skid mount 4000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank

Contact Us For Current Price

 Need A Quote ? Click Here For Same Day Quoting

   RDWS-TV-RO-SKID-6000

Complete skid mount 6000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank

Contact Us For Current Price

 Need A Quote ? Click Here For Same Day Quoting

  RDWS-TV-RO-SKID-8000

Complete skid mount 8000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank

Contact Us For Current Price

 Need A Quote ? Click Here For Same Day Quoting

  RDWS-TV-RO-SKID-10000

Complete skid mount 10000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank

Contact Us For Current Price

 Need A Quote ? Click Here For Same Day Quoting

 RDWS-TV-RO-SKID-12000

Complete skid mount 12000 gallon per day reverse osmosis system includes all listed standard features and1 - 35" dia x 80" ht 300 gallon storage tank

Contact Us For Current Price

 Need A Quote ? Click Here For Same Day Quoting



BUSINESS, COMMERCIAL, INDUSTRIAL REVERSE OSMOSIS SYSTEMS

COMPACT SMALL FOOT PRINT FLOOR STANDING REVERSE OSMOSIS WATER FILTERS

TV-Reverse Osmosis Systems ~ Reduce Waste, Uses Less Water

 50%, 60%, up to 70% *Recovery

TV Series commercial reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, and numerous other scientific, commercial and industrial applications.

Reverse Osmosis Water Systems and Commercial Filtration Equipment for livestock, growers, and agriculture - Ask about our interpretation guide for livestock and irrigation water. Treatment for Total Dissolved Solids (TDS), Sodium (Na), Sodium Adsorption Ratio (SAR), Sulfate (SO4), Nitrate (NO3-N), Electrical Conductivity (E.C.), Chloride (Cl), Bicarbonates (HCO3), Hardness, Silica, Iron (Fe), and Manganese (Mn).

RainDance Water Systems Reverse Osmosis Water Treatment Specialists - Running any of our R.O. systems listed below at 100% duty cycle (24/7) will significantly shorten the life of the pump/motor so it is not recommended. Generally, these reverse osmosis systems will do well if run at 75% (3 hours on, 1 hour off for example) or less duty cycle. The usual sizing formula for a R.O. System is to make it twice the actual needed water flow. If the usage needs 1000 GPD then a 2000 GPD system would be appropriate. This also allows some excess system capacity in case the usage requirement rises later on.

RainDance Water Systems - Water Filters

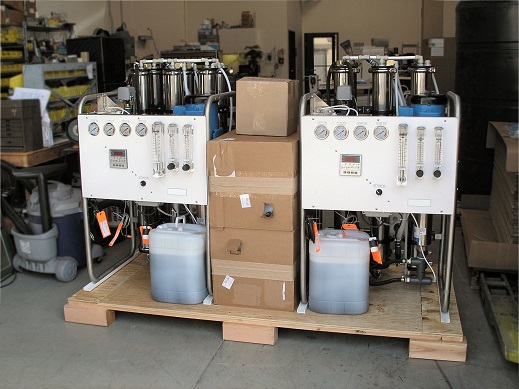

Compact Custom Floor Standing Reverse Osmosis System

Commercial Reverse Osmosis Systems

TV Series commercial reverse osmosis systems are designed for applications such as whole house water filtration, glassware, rinsing, beverage, solution preparation, and numerous other scientific, commercial and industrial applications. Water filtered by reverse osmosis has had often greater than 95%of dissolved ions removed.

TV Series commercial reverse osmosis applications include: Agriculture, Livestock, Green Houses- Orchards, Groves, Food, Ice, and Beverage Industry, Bottled Water Stores, Pharmaceutical, Electronic Industry, Process Water, Chemical Industry, Electroplating Industry, Electrical Power Generating, Polymer Solutions and more.

Vertical Mount 2,000gpd - 12,000gpd Water Production

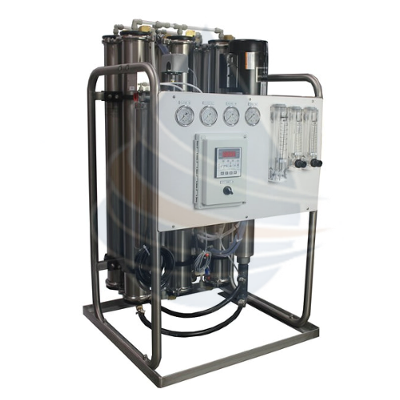

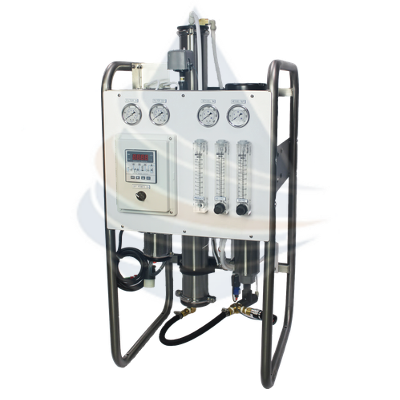

TV Series Reverse Osmosis Water Filters

  • TV SERIES QUALITY COMMERCIAL REVERSE OSMOSIS - User Friendly, Includes Features Listed Below:
    TV series are designed for commercial /industrial applications where floor space is at a premium. All major system elements are mounted within a sturdy Tubular Stainless Steel Frame - NOT ALUMINUM, welded for long term rigidity and open for easy access to all components. The TV system is a compact, heavy duty R.O. water purifier for users requiring 2000 to 12000 gallons per day water production. TV systems are fully equipped with the instruments and controls needed for reliable long term operation.

  •  Stainless steel frame for long lasting durability

  •  Structural ABS control panel

  •  Framed Caster Wheels for mobile portability - Each TV-RO unit is equipped with casters for maximum portability

  •  On / Off Switch

  •  Float Switch For Atmospheric Tank

  •  20" Pretreatment Filter: Sediment or High Chemical Absorptive Capacity, Significantly Reduces Chlorine, Volatile Organic Compounds (VOC), and TOC.

  •  Quick connect drain and product connections

  •  Feed and membrane vessel pressure gauges

  •  Product water flow meter

  •  Brine and recirculation flow meters with integral needle valves

  •  Low pressure cut off

  •  High pressure switch

  •  Patented PureFlush membrane flush feature - Clean water flushes the membrane upon start-up

  •  Low energy, thin film membrane element(s)

  • The TV series of R.O. water treatment systems are equipped with a microprocessor based controller which monitors several functional conditions and regulates operation of the high pressure pump and control valves. The controller is connected to sensors which, depending on their state, allow the cyclic production of purified water or prevent operation due to abnormal conditions. The standard configuration of the controller monitors feed water supply pressure for minimum level, product water storage tank level for system start/stop conditions and product water conductivity for maximum set point value and for digital front panel display. Additional optional parameters that the controller is capable of monitoring include main pump high pressure set point, low feed water tank level and membrane flush cycle occurrence and duration. Front panel buttons and digital display allow operator adjustment of set points and flush parameters.

  •  *TV High Recovery - Reduce Waste, Uses Less Water - 50%, 60%, up to 70% *Recovery Depending On Water Chemistry.

  •  Water Alarm: now included with every TV Series Reverse Osmosis Water Purification Order. Portable water leak detection/water alarm system - Helps detects water leaks and moisture. Sounds a loud alarm when water is detected. Includes 6ft of wire attached to the sensor and up to 100 feet of additional wire can be spliced into the line. Perfect for monitoring from your office or work area.

  •  Multipurpose Water Quality Tester: All-In-One waterproof on the spot tester offers high accuracy Electrical Conductivity (EC) / Total Dissolved Solids (TDS) and Temperature measurements in a single tester! No more switching between meters for your routine measurements. The waterproof Combo (it even floats) has a large easy-to-read, dual-level LCD and automatic shut-off. EC/TDS readings are automatically compensated for the effects of temperature (ATC). Fast, efficient, accurate and portable, the Combo Electrical Conductivity / Total Dissolved Solids (TDS) and Temperature tester brings you all the features you've asked for and more! TDS is the sum of the mineral salts in water and if too high can result in objectionable taste, cloudy ice, interference with the flavor of foods and beverages and scale left behind in pipes, machinery, glass, etc.

TV-RO SPECIFICATIONS:
.. Dimensions: 22"W x 25"D x 49"H (2-4KGPD), 29"W x 25"D x 49"H (6-12KGPD)
.. Weight: 140 -200 lbs. depending on model
.. Output*: TV-2000, 4000, 6000, 8000, 10000, & 12000 GPD models
.. Membrane: Low energy, high rejection 4040 thin film type
.. Dissolved Solids Rejection: 98%
.. Prefilter: 10 micron polypropylene depth type
.. Power Req.: 120V, 1 Ph. to 460V 3 Ph.
.. Connections: Feed - 3/4"FPT, product and tank - 1/2" tube
.. Operating Parameters: Max TDS-5000ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.
.. FREE Shipping within the continental US

commercial reverse osmosis system diagram

All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include Custom Features Listed Above

How do I get a TV-RO Reverse Osmosis Price Quote? If you would like to receive a hassle free detailed price quote please contact us at sales@raindancewatersystems.com or use our Online Quote Form. Please be sure to let us know the TV-RO Model you are interested in below. Note: All quotes will include current pricing and any special offers or free pretreatment specials

Part #

Gallons Per Day

# of Elements

 Motor Hp

 Price Guide

Whole House Reverse Osmosis Systems

 TV-RO-2000

 2000

 1

 1.0-1.5

TV-2000: $5,898.00

[Add to Cart] [View Cart]

 TV-RO-4000

4000

 2

  1.0-1.5

TV-4000: $6,898.00

[Add to Cart] [View Cart]

TV-RO-6000

 6000

 3

 1.5-2.0

TV-6000: $7,898.00

[Add to Cart] [View Cart]

 TV-RO-8000

 8000

  4

  1.5-2.0

TV-8000: $8,898.00

[Add to Cart] [View Cart]

 TV-RO-10,000

 10000

  5

  2.0-3.0

TV-10,000: $9,898.00

[Add to Cart] [View Cart]

 TV-RO-12,000

 12000

  6

 3.0-5.0

TV-12000: $10,898.00

[Add to Cart] [View Cart]

 In almost all reverse osmosis applications, providing pretreatment for the feed water protects and extends the life of the purification. While there are some exceptions, some type of pretreatment equipment is almost always used to protect the ro system. We offer complete pretreatment capabilities that include, iron filters, sediment removal, water softeners, chlorine filters, antiscalant systems, uv water systems for bacteria elimination and more. Please use our Online Quote Form or Contact Sales@RainDanceWaterSystems.com for all your pretreatment needs. Note: Any free pretreatment offers will be included in your quote.

Reverse Osmosis Storage Tank Options:

Needed to store water from reverse osmosis system
Note: Our TV reverse osmosis tanks include complete float switches for storage tanks (top tank for shut off) Larger storage tanks available upon request

Approx. 35" dia x 85" ht.
300 Gallon Storage Tank (green)
(Designed to fit through standard doorways)



Model: TK-300/Float
Price: $995.00ea *Free Shipping
Approx. 47" diameter and 83" high
500 Gallon Storage Tank (green)



Part #: LCX-TK-ST500
Price: $1,195.00ea *Free Shipping



TV REVERSE OSMOSIS REPRESSURE SYSTEM:
Draws water out of the TV storage tank to your application

 Re-pressure pump rated @ 10gpm (110v)

Designed for athmospheric storage tanks listed above.

Model: RP-10GPM

Price: $695.00ea *Free Shipping

[Add to Cart] [View Cart]

Small Compact Size High Performance Reverse Osmosis Systems

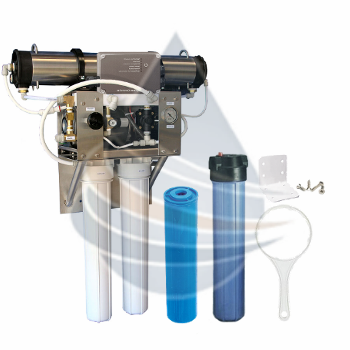

State Of The Art Stainless Steel TSM RO Series

TSM Series - TSM Stainless Steel Reverse Osmosis Systems ideal for minimum footprint water filtration uses. They are also perfect for whole house home use, coffee shops, cafe's, restaurants, spot-free rinse, labs, small business, greenhouses, organic growers and commercial water filtration. These units are compact, light and are designed for easy access to all major system components. The TSM (RO) system is a compact, heavy duty stainless steel Reverse Osmosis water purifier for users requiring 400 to 1500 gallons per day water production. As with all our purifier products, the TSM reverse osmosis systems are fully equipped with the instruments and controls needed for reliable long term operation.

Perfect Choice - compact shelf or wall mount water filter solutions for whole house water filter applications, homes, green houses, growers, coffee shops, cafe's, restaurants, spot-free rinse, labs, and small business.

RO / DI High Grade Water: If your laboratory, manufacturing facility, or water filtration application requires DI post purification we can include our separate high capacity, Semi-Conductor Grade Mixed DI Deionization Post RO cartridge system at NO EXTRA CHARGE! This deionized water cartridge is designed to treat the last traces of TOC (total organic carbon) and TDS (total dissolved solids) from the TSM RO product water for ultra-pure water applications. Designed for circuit board printing, re-circulating and cooling towers, boiler make-up water, cosmetics, steam & humidifiers, laboratory, high tech, electronic industry, lasers, jet water sprayers, spot free and more. Restrictions Apply - Please Contact Us for additional information on this special free offer.

Wall Mount Reverse Osmosis Systems

TSM QUALITY COMMERCIAL R.O. - User Friendly !
TSM series of commercial Reverse Osmosis water purifiers built to suit the needs and requirements of commercial pure water users.
This includes restaurants, coffee stores, convenience stores, microbreweries, supermarket produce and food preparation operations, misting and humidification systems, car wash facilities, and many other businesses that must have consistent high quality water for their daily operations. The key factors of reliability, serviceability, and consistent performance with minimum user intervention are achieved in the solid design of the TSM systems. Stainless steel is used throughout; in frame, pressure vessels and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.


The TSM system design is optimized for either shelf mount or wall mount installation. The four models; 400 GPD, 800 GPD, 1200 GPD and 1500 GPD all occupy the same very compact footprint. This allows flexibility in accommodating the limited space available in most commercial utility equipment locations. Quick connect tube fittings on all system ports further simplifies installation and service. Most important, all TSM models incorporate the most reliable combination of proven reverse osmosis hydraulic design and state of the art Thin Film membrane elements to provide the long term performance expected by commercial users.

TSM FEATURES
All TSM Reverse Osmosis systems include the
following important quality features.
Stainless Steel Frame & Pressure Vessels
Thin Film Composite Membranes
High capacity sediment pretreatment filters Suspended Solids (dirt, rust, sediment, etc).
High capacity carbon pretreatment filters chlorine, organic chemicals, and toc...
High Performance 3/4 HP Motors
Positive Displacement Rotary Vane Pump
Integral Hydraulic Manifold Assembly
Fast Flush Control
Low Feed Pressure Cutout Switch
Tank Pressure Control Switch
Delrin Orifice or Teflon Tube Flow Control
Feed Inlet Solenoid Valve
SS Needle Valve Pressure Control
Product Tank Pressure Relief Valve
New Blending Option - The basic configuration of the TSM series products is ideal for many typical water purification applications. However, there are certain users such as craft/microbreweries, labs, manufacturing, home use, and premium coffee houses that often desire the ability to monitor and control the TDS level of the output purified water. This option is available on TSM-400 to 1500 systems. The Blend option includes a digital TDS monitor and a metering needle valve. This option allows a precise amount of filtered feed water to be added (blended) to the product water flow and the blended TDS level is displayed on the monitor readout. *Required: Please mention that you would like to add the FREE "Blending Option" at the time of ordering.
All Systems Wet Tested Before Shipping
Operating Parameters: Max TDS-2500ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.
FREE SHIPPING ON ALL TSM REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
OVERSEAS SHIPPING AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
NO CHARGE FOR EXPORT CRATING

TSM Wall Mount Reverse Osmosis Spec Sheet

Wall Mount Reverse Osmosis Diagram

All 400gpd - 1,500gpd TSM Series Wall Mount Reverse Osmosis Systems Include Custom Features Listed Above

How do I get a TSM RO Reverse Osmosis Price Quote? If you would like to receive a hassle free detailed price quote please contact us at sales@raindancewatersystems.com or use our Quote Form. Please be sure to let us know the TSM Wall Mount RO Model you are interested in below. Note: All quotes will include current pricing and any special offers or free pretreatment specials

Stainless Steel Reverse Osmosis System

Part #

Gallons Per Day

 Voltage

 Price

 TSM-RO-400

 400GPD

 110/220

TSM-400: $2,998.00

[Add to Cart] [View Cart]

 TSM-RO-800

 800GPD

 110/220

TSM-800: $3,198.00

[Add to Cart] [View Cart]

TSM-RO-1200

 1,200GPD

 110/220

TSM-1200: $3,298.00

[Add to Cart] [View Cart]

 TSM-RO-1500

Most Popular

  1,500GPD

  110/220

 TSM-1500: $3,498.00

[Add to Cart] [View Cart]

TSM-1500 Overall Dimensions:
45" W x 8" D x 14" HT

In almost all reverse osmosis applications, providing pretreatment for the feed water protects and extends the life of the purification. While there are some exceptions, some type of pretreatment equipment is almost always used to protect the ro system. We offer complete pretreatment capabilities that include, iron filters, sediment removal, water softeners, chlorine filters, antiscalant systems, uv ultraviolet disinfection and more. Contact Sales@RainDanceWaterSystems.com for all your pretreatment needs. Note: Any free pretreatment offers will be included in your quote.

RainDance Water Systems TSM Reverse Osmosis Options List:
TSM REVERSE OSMOSIS HYDRO-PNEUMATIC PRESSURIZED STORAGE TANKS:
No room for a storage tank and re-pressure pump? Use these pre-charged Reverse Osmosis System pressure tanks when you have limited space requirements and lower water volume demand. Perfect for restaurants, cafe's, labs, offices, wet bar, spot free rinse, and more

30 gallon hydro-pneumatic pressure tank. 18 gallons in storage.
Dimensions 16" diameter x 44" high. Shut off valve included.
Volume is based on a 50psi shutoff and 15psi pre-charge

 Model: PT-30

Price: $650.00ea *Free Shipping

[Add to Cart] [View Cart]

40 gallon hydro-pneumatic pressure tank. 24 gallons in storage.
Dimensions 16" diameter x 57" high. Shut off valve included.
Volume is based on a 50psi shutoff and 15psi pre-charge

 Model: PT-40

Price: $750.00ea *Free Shipping

[Add to Cart] [View Cart]

80 gallon hydro-pneumatic pressure tank. 48 gallons in storage.
Dimensions 25" diameter x 56" high. Shut off valve included.
Volume is based on a 50psi shutoff and 15psi pre-charge

 Model: PT-80

Price: $850.00ea *Free Shipping

[Add to Cart] [View Cart]

Reverse Osmosis Storage Tank Options:

Needed to store water from reverse osmosis system
Note: Our TSM reverse osmosis tanks include complete float switches for storage tanks (top tank for shut off) Larger storage tanks available upon request

Approx. 35" dia x 85" ht.
300 Gallon Storage Tank (green)
(Designed to fit through standard doorways)



Model: TK-300/Float
Price: $995.00ea *Free Shipping
Approx. 47" diameter and 83" high
500 Gallon Storage Tank (green)



Part #: LCX-TK-ST500
Price: $1,195.00ea *Free Shipping



TSM REVERSE OSMOSIS REPRESSURE SYSTEM:
Draws water out of the TSM storage tank to your application

 Re-pressure pump rated @ 10gpm (110v)

Designed for athmospheric storage tanks listed above.

Model: RP-10GPM

Price: $695.00ea *Free Shipping

[Add to Cart] [View Cart]



 If your water requires a customized water quality solutions contact RainDance Water Systems today ! If you already have a water analysis email your results to support@raindancewatersystems.com or fax it to 760-896-6999 Attn: "Skid RO Recommendation" and we will recommend the appropriate water treatment system.

Commercial Water Filter Equipment Selection Guide

Full line of commercial water filters for virtually every water filtration application

 Commercial Water Filter Selection Guide:


Order online 24 hours a day 7 days a week or call toll free 1-877-788-8387 Free shipping on most residential water treatment within the Continental US.




RainDance Water Systems Consulting
