- The
High Performance Compact TV Series - Whole House (RO) Filter
Systems
- Affordable water treatment
- Free limited time offers, save with special package pricing,
*free shipping
-
- We know that
you have high expectations, and as a water treatment dealer we
enjoy the challenge of meeting and exceeding those standards
each and every time. Allow us to demonstrate our commitment to
excellence!
-
- From RainDance
Water Systems R.O. Water Treatment Specialists - Running any
of our R.O. systems listed below at 100% duty cycle (24/7) will
significantly shorten the life of the pump/motor so it is not
recommended. Generally, these reverse osmosis systems will do
well if run at 75% (3 hours on, 1 hour off for example) or less
duty cycle. The usual sizing formula for a R.O. System is to
make it twice the actual needed water flow. If the usage needs
1000 GPD then a 2000 GPD system would be appropriate. This
also allows some excess system capacity in case the usage requirement
rises later on.
-
-
- RESIDENTIAL,
BUSINESS, COMMERCIAL, INDUSTRIAL REVERSE OSMOSIS SYSTEMS
- COMPACT
SMALL FOOT PRINT FLOOR STANDING RO WATER FILTERS
-
- Each
Mobile TV-RO unit is equipped with caster wheels for maximum
portability
-
- TV Series commercial
reverse osmosis systems are designed for applications such as
whole house water filtration, glassware, rinsing, beverage, solution
preparation, and numerous other scientific, commercial and industrial
applications. Water filtered by reverse osmosis has had often
greater than 95%of dissolved ions removed.
-
- TV Series commercial
reverse osmosis applications include: Agriculture, Livestock,
Green Houses- Orchards, Groves, Food, Ice,and Beverage Industry,
Bottled Water Stores, Pharmaceutical, Electronic Industry, Process
Water, Chemical Industry, Electroplating Industry, Electrical
Power Generating, Polymer Solutions and more.
-

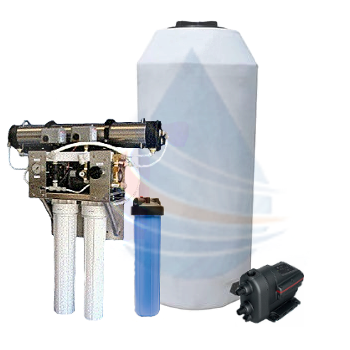

- Our whole house reverse osmosis
systems are designed for the customer who wants a state of the
art, user friendly, low maintenance multi-filtration system to
filter and to provide great tasting drinking water for his/her
family. Reverse Osmosis is the same process that major water,
beverage bottling, and pharmaceutical companies use. These systems
are designed to filter brackish water, high levels of sodium
and total dissolved solids (TDS), and more. If your well has
salt water intrusion problems and high TDS, this is the only
solution.
-
- Vertical Mount 2,000gpd
- 12,000gpd Water Production

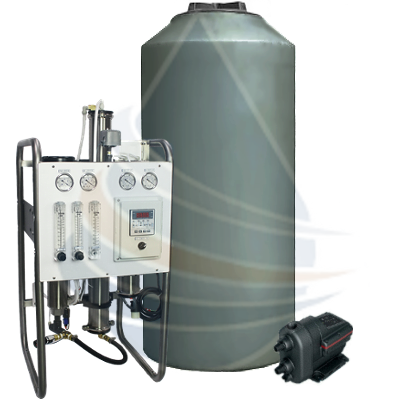

- TV
Series Whole House Reverse Osmosis
Water Filters

- TV SERIES QUALITY WHOLE HOUSE
REVERSE OSMOSIS - User Friendly, Compare Standard Features Listed
Below:
TV series are designed
for home/commercial /industrial applications where floor space
is at a premium. All major system elements are mounted within
a sturdy tubular stainless steel frame, welded for long term
rigidity and open for easy access to all components. The TV system
is a compact, heavy duty R.O. water purifier for users requiring
2000 to 12000 gallons per day water production. TV systems are
fully equipped with the instruments and controls needed for reliable
long term operation.
-
- All 2,000gpd Through 12,000gpd
TV Series Reverse Osmosis Systems Include Our Following "BEST"
Features:
.. Stainless steel frame, structural ABS control panel
- .. Casters for mobile portability
- Each TV-RO unit is equipped with casters for maximum portability
.. Stainless steel membrane vessels
.. On / Off Switch
.. Float Switch For Atmospheric Tank
.. 20” Prefilter - Protects Membrane provides dechlorination, organic chemical
and sediment filtration.
.. Quick connect brine and product connections
.. Feed and membrane vessel pressure gauges
.. Product water flowmeter
.. Brine and recirculation flow meters with integral needle valves
.. Multipurpose Water Quality Monitor: The HI 98130
Combo waterproof tester offer high accuracy pH, electrical conductivity
(EC), total dissolved solids (TDS) and temperature measurements
in a single tester! No more switching between meters for your
routine measurements. The waterproof Combo (it even floats) has
a large easy-to-read, dual-level LCD and automatic shut-off.
pH and EC/TDS readings are automatically compensated for the
effects of temperature (ATC). This technologically advanced tester
has a replaceable pH electrode cartridge with an extendable cloth
junction as well as an EC/TDS graphite electrode that resists
contamination by salts and other substances. This gives these
meters a greatly extended life. Your tester no longer needs to
be thrown away when the pH sensor is exhausted. The EC/TDS conversion
factor is user selectable as is the temperature compensation
coefficient (ß). Fast, efficient, accurate and portable,
the Combo pH, EC/TDS and temperature tester brings you all the
features you've asked for and more!
.. Low pressure cut off
.. High pressure switch
.. Patented PureFlush membrane flush feature - Clean water
flushes the membrane upon start-up
.. Low energy, thin film membrane element(s)
.. "The TV series of R.O. water treatment systems are equipped
with a microprocessor based controller which monitors
several functional conditions and regulates operation of the
high pressure pump and control valves. The controller is connected
to sensors which, depending on their state, allow the cyclic
production of purified water or prevent operation due to abnormal
conditions. The standard configuration of the controller monitors
feed water supply pressure for minimum level, product water storage
tank level for system start/stop conditions and product water
conductivity for maximum set point value and for digital front
panel display. Additional optional parameters that the controller
is capable of monitoring include main pump high pressure set
point, low feed water tank level and membrane flush cycle occurrence
and duration. Front panel buttons and digital display allow operator
adjustment of set points and flush parameters."
-
- SPECIFICATIONS:
.. Dimensions: 22”W x 25”D x 49”H (2-4KGPD), 29”W
x 25”D x 49”H (6-12KGPD)
.. Weight: 140 -200 lbs. depending on model
.. Output*: TV-2000, 4000, 6000, 8000, 10000, & 12000 GPD
models
.. Membrane: Low energy, high rejection 4040 thin film type
.. Dissolved Solids Rejection: 98%
.. Prefilter: 10 micron polypropylene depth type
.. Power Req.: 120V, 1 Ph. to 460V 3 Ph.
.. Connections: Feed - 3/4”FPT, product and tank - 1/2”
tube
.. Operating Parameters: Max TDS-5000ppm, Total iron is less
than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below
5 gpg.
.. FREE
Shipping within the continental US
-
- Contact us today for great
savings! Save now on all Whole House TV-RO Systems
We invite you to take advantage of our best prices and specials
of the year. Our Representatives are happy to discuss your water
purification needs. To get started, simply fill out our TV-RO
Quote Form below or email us at support@raindancewatersystems.com
, fax at (760) 896-6999, or toll-free at (877) 788-8387. We look
forward to serving you. Whether you have a city water or well
water source Hard Water must be pretreated prior
to the ro system. Ask how you can include a no-salt, no-chloride
discharge hard water pretreatment system FREE with the purchase
of any TV-RO Series.
-
- TV
Series Reverse Osmosis Specifications
- All
2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems
Include Custom Features Listed Above
- PH:
1-877-788-8387 - Fax: 1-760-896-6999 - Email: sales@raindancewatersystems.com
- support@raindancewatersystems.com
-
Pretreatment is required to optimize
system performance and prevent the three main problems associated
with RO: scaling, fouling, and degradation of reverse osmosis
membranes. Ask about our FREE (RO) Pretreatment Offer - support@raindancewatersystems.com

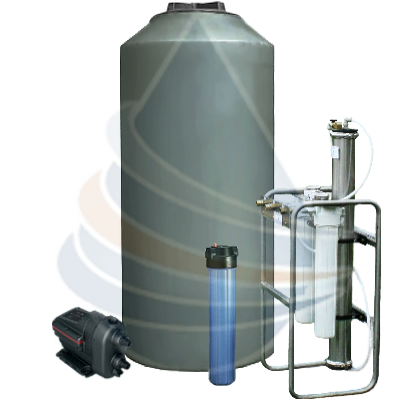

- TV LARGE VOLUME REVERSE OSMOSIS
STORAGE TANKS:
- Needed to store water from reverse
osmosis system
- Note: Our TV reverse osmosis
tanks include complete float switches for storage tanks (top
tank for shut off)
- Approx. 35"
dia x 81" ht. 300 Gallon Storage Tank (green)
- (Designed to fit through standard
doorways)
|
- Model: TK-300/Float
- Price: $995.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
- Approx. 47" diameter and 78"
high 550 Gallon Storage Tank (green)
|
-
- Part #: LCX-TK-ST550
- Price: $1,195.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
- TV REVERSE OSMOSIS REPRESSURE
SYSTEM:
- Draws water out of the TV storage
tank to your application
- Re-pressure pump rated @ 10gpm
(110v)
- Designed for athmospheric storage
tanks listed above.
|
- Model: RP-10GPM
- Price: $695.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
-

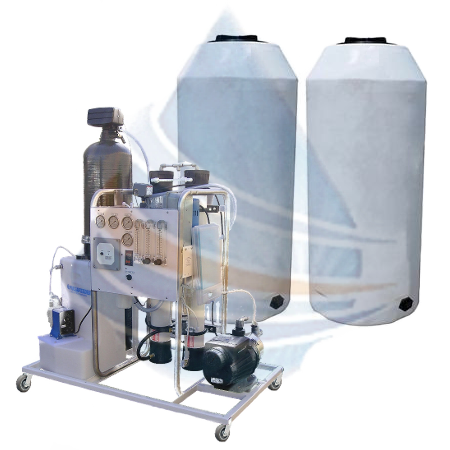

- Upgrade to the Premium
RDWS-TV-RO-Skid Series
- The Complete RainDance Water Systems TV-RO Skid Series Whole
House Reverse Osmosis
Our RDWS-TV-RO Skid Mount Series
reverse osmosis systems are designed for applications such as
whole house, glassware, rinsing, beverage, solution preparation,
and numerous other scientific, commercial and industrial applications.
Water treated by reverse osmosis has had often greater than 95%-99%
of dissolved ions removed.
RDWS-TV-RO Skid Mount Series
reverse osmosis applications include: Whole House, Agriculture,
Livestock, Green
Houses- Orchards, Groves, Food, Ice,and Beverage Industry, Bottled Water
Stores, Pharmaceutical, Electronic
Industry, Process
Water, Chemical
Industry, Electroplating
Industry, Electrical
Power Generating, Polymer Solutions and more.
A Must Have For
Your Skid Mount Water Treatment System! All Skid RO Series commercial reverse osmosis systems
now include a state of the art microprocessor based controller which monitors several functional conditions
and regulates operation of the high pressure pump and control
valves. The controller is connected to sensors which, depending
on their state, allow the cyclic production of purified water
or prevent operation due to abnormal conditions. The standard
configuration of the controller monitors feed water supply pressure
for minimum level, product water storage tank level for system
start/stop conditions and product water conductivity for maximum
set point value and for digital front panel display. Additional
optional parameters that the controller is capable of monitoring
include main pump high pressure set point, low feed water tank
level and membrane flush cycle occurrence and duration. Front
panel buttons and digital display allow operator adjustment of
set points and flush parameters."Perfect for serviceman
or do it yourselfer.
COMPARE
OUR RDWS-TV-RO-SKID FEATURES - WE INVITE COMPARISONS TO ANYTHING
ON THE MARKET!
RO Skid Mount Series Include
NSF 55 Class A Certified UV Treatment
Assurance: On Skid UV Ultraviolet Water Treatment
carries NSF/ANSI Standard 55, Class A Certification. These units
are ideal for use in any UV application where a third-party validated
unit is specified.
RDWS-Skid-RO Series are preplumbed
and prewired in most cases with one inlet connection, one drain
connection, one water use connection, and one electrical connection
to allow for fast hassle free installation. From the delivery
of the equipment to your facility to the set up and use of water
- In hours not days!
Create the ultimate water supply
with our user friendly RDWS-TV-RO-Skid Series reverse
osmosis systems. Each high capacity Skid Series reverse
osmosis system includes: Complete no-salt pre-treatment for iron,
manganese, hydrogen sulfide gas, suspended solids, silica, chlorine,
organics and hard water. This state of the art skid mount reverse
osmosis system also includes our pH neutralizing system designed
to keep your water non-corrosive. See our standard features
listed below. All components - (excluding storage tank) are contained on our skid mount platform
with wheels - for easy positioning. Our Complete Packaged Skid
Mount Reverse Osmosis Systems are among the most water efficient
systems in the industry. With the use of concentrate water recirculation
our systems can recover 50% to 60% of the feed water as product
water. Most other systems only recover 30% to 40% of the feed
water.
- RainDance Water Systems
TV-RO Skid Series Standard Features
- All components (excluding
storage tank) located and
contained on our skid mount platform with wheels - for easy positioning.
- Approx. System dimensions: 34"W
x 96"L x 75" high (1000gpd -12000gpd) Designed to fit
through most standard door ways.
- Single point power connection
for 220V, 50 Hz, 1-Phase power. Custom and overseas power connections
available.
- Includes on skid (NO-Salt
Discharge) Hard Water Treatment antiscalant feed system -
Pretreats and protects the membrane from hard water scale and
silica. Antiscalant injection method is preferable to brine regenerating
softeners as it is lower maintenance, economical, and is perfect
for areas of the country that have chloride discharge limits.
The antiscalant formulation has been certified by the National
Sanitation Foundation (NSF) under ANSI/NSF Standard 60
for use in producing potable water.
- Includes on skid (NO Salt)
iron, manganese, hydrogen sulfide gas, and suspended solids well
water pretreatment system or substitute our (No Salt) chlorine
removal system for city water sources.
- Automatic Flush on start up
- Fast clean-flushes membrane each time the unit starts.
- Includes a microprocessor
based controller - Controller includes digital product water
conductivity indicator, Controller monitors feed water pressure,
pump output pressure, product water conductivity, product water
storage tank level and performs membrane flush on startup. Low
feed pressure, high pump pressure and high product water conductivity
result in alarm state indications. System control panel includes
prefilter in and out pressure gauges, pressure vessel in and
out pressure gauges, product water flow meter, recirc. flow meter
with control valve and concentrate flow meter with control valve."Perfect
for serviceman or do it yourselfer."
- Includes 1- 20" BB sediment
prefilter to remove dirt and sediment
- Includes 1- 20" BB carbon
prefilter
- Prefilter outlet equipped with
pressure switch for use by system controller to detect low feed
pressure and clogged prefilter condition.
- Includes a Thin Film Composite
Membrane. Rejection rate (98% +). High feed water recovery
rate (50% +).
- Includes additional testing
monitor - Portable waterproof tester offers high accuracy pH,
electrical conductivity (EC), total dissolved solids (TDS) and
temperature measurements in a single tester. Allows you to test
untreated and post treated water.
- Includes on skid Post pH
correction of product water. Designed to keep your ro water non-corrosive
and protect any copper plumbing.
- Includes 1- 35" dia. x
81" ht. 300 gallon storage tank. For ease of handling and
ability to get through doors we use a multiple array of tanks.
Product water storage tank is green, with 16" manway, 2"
bottom inlet/outlet (bushed to 1.25"). Two ea. Pump Up float
switches installed in tank.
- Includes 12gpm @ 50psi fully
automatic electric pump (constant pressure) re-pressure system
- Draws water out of the storage tank.
- Includes on skid chemical free
ultraviolet UV system. Ultraviolet Water Treatment carries NSF/ANSI
Standard 55, Class A Certification. These units are ideal for use in any
UV application where a third-party validated unit is specified.
- Each skid mount reverse osmosis
is fully assembled and tested before it leaves the plant.
- For optimum Skid RO Series performance
customers must have at least 7gpm @ 30psi available. Note: Our
Skid RO Series contains complete pretreatment for chlorine and
hard water (calcium) typically associated with municipal water
sources. If Skid RO is to be used on well water we offer the
following guidelines: Operating Parameters: Max TDS-3500ppm,
Total iron
is less than 5ppm, Manganese is less than 3ppm, H2S less than
10ppm, Water hardness below 60gpg, pH 6.5 -8.5, No iron bacteria. Calculations of
production capabilities are based on a feed water temperature
of 60 Deg. F. Lower temperatures may result in slightly lower
production levels.
- Unlike most
companies , we are able to tailor our Skid RO systems to your
needs. To ensure the longest trouble free system life and best
possible treated water quality, we encourage you to fax (760-896-6999)
or E-mail your water chemistry
report or let us know the name of your municipal water district
provider. You may also send us a water sample for evaluation.
- FREE SHIPPING
ON ALL RO SKID REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED
STATES.
- OVERSEAS SHIPPING
AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
- Not all reverse osmosis systems
are created equal! RainDance
Water Systems offers top of the line
- state of the art reverse osmosis
systems for your home, factory, business, and farm. See what
sets our reverse osmosis filters apart from all others and why
companies and home owners from all over the Globe have chosen
RainDance Water Systems for their water treatment needs.
-
- See and compare our unmatched
Skid RO Reverse Osmosis selection below - standard features (listed
above) include movable skid on casters, storage tank, pretreatment,
UV system, built-in skid mount pH neutralizer system and microprocessor
based controller. Most important our Skid RO Series are pretested
before shipping, user friendly, and components are shipped pre-plumbed
on the skid and in most cases unit only requires a single point
power connection
-
- RDWS-TV-RO-Skid
Reverse Osmosis Systems Selection & Pricing
|
Model # |
Description |
Price |
|
RDWS-TV-RO-SKID-1000 |
- Complete skid mount 1000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click Here For Our No-Hassle TV-RO-SKID Quote
|
- Price
$13,175.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-2000 |
- Complete skid mount 2000 gallon
per day reverse osmosis system
includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click Here For Our No-Hassle TV-RO-SKID Quote
|
- Price $14,975.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-4000 |
- Complete skid mount 3000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click Here For Our No-Hassle TV-RO-SKID Quote
|
- Price $15,575.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-6000 |
- Complete skid mount 6000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price $17,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-8000 |
- Complete skid mount 9000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price $23,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-10000 |
- Complete skid mount 9000 gallon
per day reverse osmosis system
includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price
$25,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-12000 |
- Complete skid mount 12000 gallon
per day reverse osmosis system
includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price $27,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
-
- All
RDWS-TV-RO-SKID Series - Free shipping provided within
the continental United States
-
- High Performance
Wall Mount (RO) Reverse Osmosis Systems
-
- State Of The Art
Stainless Steel TSM RO Series
- TSM
Series - TSM Stainless
Steel Reverse Osmosis Systems ideal for minimum footprint
water filtration uses. They are also perfect for whole house
home use, coffee shops, cafe's, restaurants, spot-free rinse,
labs, small business, greenhouses, organic growers and commercial
water filtration. These units are compact, light and are designed
for easy access to all major system components. The TSM (RO)
system is a compact, heavy duty stainless steel Reverse Osmosis
water purifier for users requiring 400 to 1200 gallons per day
water production. As with all our purifier products, the TSM reverse osmosis systems
are fully equipped with the instruments and controls needed for
reliable long term operation.
- Perefect Choice - compact
shelf or wall mount water filter solutions for whole house water
filter applications,
- homes, green houses,
growers, coffee shops, cafe's,
restaurants, spot-free rinse, labs, and small business.
-
- Wall Mount / Shelf
Mount 400gpd - 1200gpd Water Production
- TSM
Series Reverse Osmosis Water
Systems
- TSM Reverse Osmosis
System Shown With Attached Pretreatment (Included Free For A
Limited Time June 2009 Only )
-
- TSM QUALITY COMMERCIAL R.O.
- User Friendly !
TSM series of commercial Reverse Osmosis water systems built
to suit the needs and requirements of residential and commercial
water users.
This includes whole house, restaurants, coffee stores, convenience
stores, micro breweries, supermarket produce and food preparation
operations, misting and humidification systems, car wash facilities,
and many other businesses that must have consistent high quality
water for their daily operations. The key factors of reliability,
servicability, and consistent performance with minimum user intervention
are achieved in the solid design of the TSM systems. Stainless
steel is used throughout; in frame, pressure vessels and fastening
hardware to provide the structural strength and corrosion resistance
appropriate for a commercial appliance.
The TSM system design is optimized for either shelf mount
or wall mount installation. The three models; 400 GPD,
800 GPD and 1200 GPD all occupy the same very compact footprint.
This allows flexibility in accomodating the limited space available
in most home and commercial utility equipment locations. Quick
connect tube fittings on all system ports further simplifies
installation and service. Most important, all TSM models incorporate
the most reliable combination of proven reverse osmosis hydraulic
design and state of the art Thin Film membrane elements to provide
the long term performance expected by commercial users.
TSM FEATURES
All TSM Reverse Osmosis systems include the
following important quality features.
• Stainless Steel Frame & Pressure Vessels
• Thin Film Composite Membranes
• High Performance 3/4 HP Motors
• Positive Displacement Rotary Vane Pump
• Integral Hydraulic Manifold Assembly
• Fast Flush Control
• Low Feed Pressure Cutout Switch
• Tank Pressure Control Switch
• Delrin Orifice or Teflon Tube Flow Control
• Feed Inlet Solenoid Valve
• SS Needle Valve Pressure Control
• Product Tank Pressure Relief Valve
- • 2009 Feature Upgrade:
Includes: Our
best water monitoring - Portable waterproof
tester offers high accuracy pH, electrical conductivity (EC),
total dissolved solids (TDS) and temperature measurements in
a single tester! No more switching between meters for your routine
measurements. The waterproof Combo (it even floats) has a large
easy-to-read, dual-level LCD and automatic shut-off. pH and EC/TDS
readings are automatically compensated for the effects of temperature
(ATC). This technologically advanced tester has a replaceable
pH electrode cartridge with an extendable cloth junction as well
as an EC/TDS graphite electrode that resists contamination by
salts and other substances. This gives these meters a greatly
extended life. Your tester no longer needs to be thrown away
when the pH sensor is exhausted. The EC/TDS conversion factor
is user selectable as is the temperature compensation coefficient
(ß). Fast, efficient, accurate and portable, the Combo
pH, EC/TDS and temperature tester brings you all the features
you've asked for and more! TDS is the sum of the mineral salts
in water and if too high can result in objectionable taste, cloudy
ice, interference with the flavor of foods and beverages and
scale left behind in pipes, machinery, glass, etc.
• All Systems Wet Tested Before Shipping
- Operating Parameters: Max TDS-2500ppm,
Total iron
is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness
below 5 gpg.
- FREE SHIPPING
ON ALL CRO REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
- OVERSEAS SHIPPING
AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
- NO CHARGE FOR
EXPORT CRATING
-
-
- RainDance
Water Systems Limited Time Only TSM Stainless Steel
RO Series FREE Pre-Treatment Special
-
 Protect Your Investment, Save Money, Avoid Unnecessary
Downtime! - LIMITED TIME FREE SPECIAL
- INCLUDED
FREE *Dual
20" sediment / carbon filter pretreatment system included
FREE with every TSM reverse osmosis system
order. Attaches directly to the base of the TSM RO system
creating a unitized wall mount assembly.The Pre-filter components
are mounted within a sturdy, heavy gauge stainless steel frame
with easy access to inlet and outlet connections.
-
 FREE Integrated Dual Sediment/Carbon Prefilter System Included.
- Provides Reverse
Osmosis Membrane Protection from Premature Fouling (loss of rejection
& production).
Consists of (1) Sediment Filter Cartridge + (1) Carbon Block
Filter Cartridge.
Sediment Filter is rated @ 5 microns and filters Suspended Solids
(dirt, rust, sediment, etc).
Carbon Filter Significantly Reduces Chlorine and Organic Compounds.
Heavy gauge stainless steel frame with fasteners to attach to
the TSM RO System,
- wall mountable
as support for TSM-RO system, 2 each 20” Slim Line pre-filters,
- Feed shut-off
ball valve and EZ-Wrench for no-hassle pre-filter maintenance.
|
- TSM
Series Commercial Reverse Osmosis
Specifications
- Signature
Stainless Steel TSM Series
Commercial
Reverse Osmosis Price Guide
-
- TSM HIGH PRODUCING LIGHT COMMERCIAL
REVERSE OSMOSIS SYSTEMS
|
Part # |
Gallons Per Day |
# of Elements |
Motor Hp |
Voltage |
Price |
|
TSM-RO-400 |
400 |
1 |
3/4 |
110/220 |
- TSM-400:
$2,798.00
- [Add to Cart] [View
Cart]
- *Free shipping within the continental
US
- E-Mail Or Call Toll Free
- 1-877-788-8387
|
|
TSM-RO-800 |
800 |
1 |
3/4 |
110/220 |
- TSM-800:
$2,898.00
- [Add to Cart] [View
Cart]
- *Free shipping within the continental
US
- E-Mail Or Call Toll Free
- 1-877-788-8387
|
|
TSM-RO-1200 |
1200 |
1 |
3/4 |
110/220 |
- TSM-1200:
$2,998.00
- [Add to Cart] [View
Cart]
- *Free shipping within the continental
US
- E-Mail Or Call Toll Free
- 1-877-788-8387
|
- TSM
Series SS Reverse Osmosis can
be used with your existing atmospheric storage tank & pressure
tanks Or choose from our options
-
- RainDance
Water Systems TSM Reverse Osmosis Options List:
- TSM REVERSE OSMOSIS HYDRO-PNEUMATIC
PRESSURIZED STORAGE TANKS:
- No room for a storage tank and re-pressure
pump? Use these pre-charged Reverse Osmosis System pressure tanks
when you have limited space requirements and lower water volume
demand. Perfect for restaurants, cafe's,
labs, offices, wet bar, spot free rinse, and more
- 30 gallon hydro-pneumatic
pressure tank. 18 gallons in storage.
- Dimensions 16” diameter x 44”
high. Shut off valve included.
- Volume is based on a 50psi shutoff
and 15psi pre-charge
|
- Model: PT-30
- Price: $650.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
- 40 gallon hydro-pneumatic pressure
tank. 24 gallons in storage.
- Dimensions 16” diameter x 57”
high. Shut off valve included.
- Volume is based on a 50psi shutoff
and 15psi pre-charge
|
-
- Model: PT-40
- Price: $750.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
- 80 gallon hydro-pneumatic pressure
tank. 48 gallons in storage.
- Dimensions 25” diameter x 56”
high. Shut off valve included.
- Volume is based on a 50psi shutoff
and 15psi pre-charge
|
-
- Model: PT-80
- Price: $850.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
- TSM LARGE VOLUME REVERSE
OSMOSIS STORAGE TANKS:
- Needed to store water from reverse osmosis
system
- Note: Our TSM reverse osmosis tanks include
complete float switches for storage tanks (top tank for shut
off)
- Approx. 35"
dia x 81" ht. 300 Gallon Storage Tank (green)
- (Designed to fit through standard
doorways)
|
-
- Model: TK-300/Float
- Price: $995.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
- Approx. 31"
dia x 72" ht. 200 Gallon Storage Tank
- (Designed to fit through standard
doorways)
|
-
- Model: TK-200/Float
- Price: $895.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
- TSM REVERSE OSMOSIS REPRESSURE
SYSTEM:
- Draws water out of the TSM storage tank to
your application
- Re-pressure pump rated @ 10gpm
(110v)
- Designed for athmospheric storage
tanks listed above.
|
-
- Model: RP-10GPM
- Price: $695.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
- TSM POST pH CORRECTION SYSTEM:
- Increase your pH. Designed to keep your ro
water non-corrosive and protect any copper plumbing.
- 4” x 20” Big Blue Calcite
Cartridge mounted separately. Capacity 24,000GAL. Includes housing,
bracket, wrench and one 20"cartridge
|
- Model: CCPH-20-BB
- Price: $195.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
|
4” x 20” Big Blue
Calcite Replacement Cartridge. Capacity 24,000GAL. |
- Model: CCPH-20-BBRPF
- Price: $40.00ea *Free
Shipping
- [Add to Cart] [View
Cart]
|
-
- TSM & TV REVERSE OSMOSIS
HARD WATER PRETREATMENT:
- Calcium and magnesium (limescale) - both
which are removed by a water softener - are two of the hardest
minerals for a reverse osmosis membrane to remove. A water softener
will help extend the life of your reverse osmosis membrane and,
thus, improve the efficiency of your reverse osmosis water filter.
- Hard Water Pretreatment For
City Municipal Water Or Well Water Sources
-
- SPECIFICATIONS - (115V) Dual
Purpose Water Softener/Iron Filter:
• Flow range: 12 U.S. GPM
- • Approx. grain capacity:
45,000
• Max pressure: 100 psi
• Min pressure: 45 psi
• Max hardness 60gpg
• Max Ferrous and Ferric Iron: 5mg/L (ppm)
• Max Manganese: 3mg/L (ppm)
• 1" Inlet and outlet connections
- • Tank dimensions: 10"
dia x 54" ht
- • Brine tank dimensions:
18"dia x 40"ht
- • Stainless steel cover
for tank
- • Water bypass included
- • Maintenance: Periodically
add either sodium or potassium pellets
- FEATURES and BENEFITS - (115V)
Pretreatment System:
The LCX-WST1054M
Water Softener/Iron Filter is installed
before the TSM or TV RO unit to provide adequate pretreatment
and prevent the membrane from fouling prematurely.
-
- This is a self-backwashing system
that automatically removes the trapped contaminants within the
filter bed and washes them down the drain. This is accomplished
with the user-friendly digital electronic control valve that
is mounted on top of the softener.This valve is controlled by
a meter, that calculates the amount of water being used. Once
the meter reaches x amount of gallons, It then initiates the
backwash cycle that cleans the bed of filtration media and resets
it for the next period of filtration.
-
- Extremely easy maintenance:
This involves periodically adding either potassium or sodium
pellets to the brine tank. We recommend keeping the brine tank
at least half full (5 bags) with pellets. Every 2-4 months lift
lid on the brine tank to see if you need to add more pellets.
Maintenance and Regeneration cycles will vary on water chemistry
and usage.
|
- Part
#: LCX-WST1054M
- List
Price: $1,395.00ea *Free Shipping
- [Add to Cart] [View
Cart]
-
- *Special
Package Price: $1,095.00ea.
-
- *Special Packaged Pricing on
our Part
#: LCX-WST1054M is available
to all customers purchasing any TSM or TV reverse osmosis systems
listed on this webpage. Purchases must be made at the same time
either by adding your order to our secure online shopping cart
or by ordering through our customer service department at 1-877-788-8387.
If you have any questions regarding our Package Pricing please
call 1-877-788-8387 or e-mail us @ sales@raindancewatersystems.com
-
-
- *Free shipping within the continental
US.
|
- TSM & TV REVERSE OSMOSIS
OPTIONAL POST UV ULTRAVIOLET WATER TREATMENT:
Model:
UV-S-12-Q
Features
(12 gpm) flow rate
253.7 nm wave length
Ultraviolet Dosage: 36,000 watt-seconds per square centimeter
high output low pressure mercury vapour lamps with high isolation
pin design
304 stainless steel reactor chambers, brilliantly polished for
laboratory or medical applications
NEW 1" MNPT / 3/4" FNPT "combination" fittings
for installation flexibility
drain port for reactor chamber flushing
easy servicing - no need to disconnect water flow to change UV
lamp
new "easy access" aluminum base for quick and easy
servicing
open end quartz sleeves and aluminum gland nuts for optimum operating
temperature and sealing efficiency
SPECIFICATIONS:
Flow Rate:12 gpm
Length: 37"
Width: 7"
Height:8"
Cell Diameter:3.5"
Shipping Weight: 23 lbs.
Voltage: 115V./60Hz
Power Consumption: 42
Total Lamp Watts: 39
Maximum Operating Pressure: 8.62 bar (125 psi)
Ambient Temperature: 2 - 40°C (36 - 104°F)
Quartz Sleeve: Yes
Inlet/Outlet Port Size: 1" MNPT / 3/4" FNPT "combo"
Visual Lamp Failure System: Yes
Audible Lamp Failure System: Yes
Reactor Chamber Material: 304 Stainless Steel |
- Part
# UV-S-12Q
- List Price: $725.00 *Free Shipping
| |
