TSM-1500 Whole House Reverse Osmosis Purification Package
Compare our ultra user-friendly Compact Whole House RO Package to any similar whole house purification package on the market today! You'll find that no system can stand up to our TSM-1500 Whole House RO Package, and on top of our superior purification package our customer service and technical support is unmatched. Find out what makes this package unbeatable below.
Sizing your Whole House RO System: Keep in mind that an RO system produces a certain amount of purified water within a 24 hour period, so it's important not to undersize the system. You should size your whole house RO by cutting it's rated gallon per day capacity in half for household production. For example, our TSM-1500 Whole House RO system can produce 1,500 gallons within 24 hours, or approximately 750 gallons every 12 hours, so this system should be considered when no more than 750 gallons is used in home per day.
NEW!
We Invite You To Compare All Of Our
Deluxe Features With Best-In-Class Easy Automatic RO Control Panel now
included with the TSM-1500 Whole House RO Package. Our integrated
electronic controller offers automated control of several system
functions and helps prolong the life of the RO motor and membrane,
providing long-term and reliable operation. Built with superior
engineering, this control panel eliminates confusing switches and
lack of feedback provided by other generic RO systems.The Automatic RO Control Panel allows the home owner to easily monitor the performance of their system by using easy-to-read light up indicators for common RO functions. Certain features such as the System Flushing and Low Pressure provide added protection by automatically cleaning the RO membrane and shutting the RO system off in events of low water pressure. Low water pressure can cause an RO system to cycle on and off which can burn out the motor and increase noise level. Other features like the RO Pump and Tank Full keep you informed when the system is running and you have a full tank of purified water. With automated control it has never been easier to operate a whole house RO system!
*Offer valid on orders made after 7/01/18
NOTICE: Place your order now before the price increase. Continuous effort is given at RainDance Water Systems to manage costs and sustain high levels of product quality and performance. Due to the inflationary pressures that we, along with many companies, are experiencing, it is necessary for us to implement a price increase that’s higher than normal to offset the increase in costs in both domestic and imported materials. We will require all orders to RainDance Water Systems, be received and confirmed no later than December 14, 2018.
  IN STOCK: YES - FREE DELIVERY: YES W/ Electronic Control Panel Online Price: $5,388.00 Pre-loaded Laptop Computer & 3 Year Replacement Filter Package Automatically Included With All Orders Made October 1, Thru October 31, 2018 *Price does not include storage tank - add your tank below     |
Model # | TSM-1500 Whole House RO Package |
| System Function | Whole House Water Purification System & Equipment Package | |
| Capacity | 1,500 Gallons Per Day | |
| High Recovery | Up To 50% (1:1 Ratio) | |
| Power | 110V 60Hz | |
| Maximum Removal Capacities | 2,500ppm
TDS < 0.3ppm Iron < 0.05ppm Manganese < 5gpg (85ppm) Hardness *If you are over these parameters contact us for pretreatment options! |
|
| Applications | Engineered for City-Treated Water, Well Water, River Water, Brackish Water Sources | |
| Prefilters | Attached Sediment & Carbon Filters - These prefilters protect to RO purifying membrane by removing sediment, debris, chlorine, pesticides, Insecticides, herbicides, THMs and organic chemicals | |
| Post Filter | Separate Remineralizer Filter/pH
Correction (Corrosion Prevention) |
|
| RO Storage Tank | Not Included - Find Storage Tank Options Below | |
| Storage Tank Delivery Pump | Yes, Included | |
|
RainDance Exclusive Whole House RO Accessories |
Color Coded Tubing RO Water Gallons Used Totalizer Monitor TDS Water Quality Monitor Pre-loaded Flash Drive w/ Instructions, Diagrams, Manuals Access To Unmatched 24/7 Support |
|
| Customer & Tech Support | Via Phone: 9am-5pm PST Mon-Fri Via Live Chat: 5am-10pm PST 365 Days A Year Via Email: 24/7 365 Days a Year |
| TSM-1500 Whole House RO Package Includes: | |
 |
Preloaded Laptop
- Owning a Whole House RO has never been easier with
everything you need at one place, anywhere you need it!
RainDance's preloaded laptop is packed with all the
installation instructions, manuals, diagrams, and
documents you need, as well as contact links to keep in
touch with RainDance whenever you need our help. Vivid
display and large fonts make finding and reading
documents a breeze. Take it with you when installing or
show your plumber, then use it whenever you need Whole
House RO support. *Limited Time Offer ends October 31st, 2018 |
 |
|
 |
Sediment & Carbon Pretreatment System - Model # TFA-500-7 Stainless Steel Dual 2.5"x 20" Sediment and Carbon TSM Shelf Prefiltration System W/ Shutoff Valve. Provides RO protection from sediment, dirt, debris, chlorine, chlorination by-products, organic chemicals, herbicides, pesticides, insecticides, radon, benzene, and much more. Sediment Filter NSF Certified 51 / Carbon Filter NSF Certified 42 - Pretreatment Equipment Dimensions: 14”W x 8”D x 23”H - Pre-installed 1/2" Easy Quick Connect Fittings |
 |
Remineralizing & pH Neutralizing System - Designed to keep your RO water non-corrosive and protect any copper plumbing. This calcite system adds back calcium and magnesium minerals to enhance the water taste for people who prefer drinking mineral water, while also effectively neutralizing acidity and raise the pH of the water. (1) 4.5” x 20” Big Blue Replaceable pH Cartridge mounted separately. pH cartridge NSF Certified 42 & 61 - also Includes housing, bracket, wrench & easy quick-connect fittings - Easily installs between the RO and storage tank. |
 |
Upgraded Delivery Pump
- Fully integrated compact booster pump draws water from
RO storage tank and delivers perfect water pressure to
all taps. Installs quickly and easily and features one
of the lowest noise levels (47 dB(A)) in it's class. Dimensions: 16"L x
7.6" W x 12"H; 1" Inlet/Outlet Ports. Power is
110v, 1-phase. 1 HP Motor. Output is 10 gpm at 50psi. *Valid on orders placed after May 1, 2018 |
 |
FREE Color Coded Installation Tubing - Perfect for the do-it-yourselfer or local plumber! RainDance is including color-coded tubing and easy quick-connect fittings for your whole house RO system to make installation a breeze. Color tubing coordinates with the RO feed water (white), product water (blue), and drain water (yellow). Includes (3) sets of 20ft of flexible 1/2" tubing. |
 |
Water Totalizing Meter
- Our reverse osmosis totalizing meter accurately
displays how many gallons of water you are using, making
it easier for you to monitor your daily water use and
track how many gallons are running through the filters. *Valid on orders placed after April 1, 2018 |
 |
Exclusive RainDance Preloaded Flash Drive - Installation is made easy with our Whole House RO Flash Drive. Includes essential information like detailed installation instructions, pictured diagrams, owners manuals, ABC's of Plumbing Handbook, Refer-A-Friend gift card offers, and more! |
 |
|
Add Your Storage Tank: Reverse osmosis systems produce water as a small stream so a separate storage tank is required to collect purified RO water and provide on-demand water to your home.
| Whole House RO Storage Tank Options | |
|
Use or Source Your Own
Atmospheric Storage Tank
· We are now giving our customers the option of using or sourcing their own storage tank! · Most atmospheric storage tanks are compatible with our whole house RO packages! · Find the right storage tank that fits your space requirements and save even more! · Use your own storage tank and add our FREE float switch & float assembly! · Preinstalled float switch on RO conserves water by shutting off RO when tank is full! *Must be purchased with Whole House RO Packages at the same time. |
 Float Switch & Float FREE |
|
RDWS 200 Gallon
Atmospheric Storage Tank
Tanks Are FDA/USDA Approved & BPA FREE! · Approx. 31" dia. x 72" ht. · Includes 1/2" Easy Quick Connect Inlet Fitting for RO system. · Includes complete float for tank and float switch on RO for full tank shut off. *Appearances may vary. Must be purchased with above whole house RO package. |
 TK-200/Float Price: $1,195.00ea |
|
RDWS 300 Gallon
Atmospheric Storage Tank
Tanks Are FDA/USDA Approved & BPA FREE! · Approx. 35" dia. x 85" ht (Designed to fit through standard doorways) · Includes 1/2" Easy Quick Connect Inlet Fitting for RO system. · Includes complete float for tank and float switch on RO for full tank shut off. *Appearances may vary. Must be purchased with above whole house RO package. |
TK-300/Float Price: $1,295.00ea |
|
RDWS 500 Gallon
Atmospheric Storage Tank
Tanks Are FDA/USDA Approved & BPA FREE! · Approx. 47" dia. x 83" ht. · Includes 1/2" Easy Quick Connect Inlet Fitting for RO system. · Includes complete float for tank and float switch on RO for full tank shut off. *Appearances may vary. Must be purchased with above whole house RO package. |
 TK-500/Float Price: $1,495.00ea |
PROTECT YOUR INVESTMENT!
Do you require pretreatment or have an outdated water softener system?
Consider our RainDance PRO Water Softener custom built for both city water and well water users! Our all-in-one pretreatment system specifically built to protect our Whole House RO Systems.
The RainDance-PRO-10 is a premium hybrid water softener customized to protect the RO system from fouling due to excessive hard water, iron, rust, manganese and hydrogen sulfide gas odors. The RainDance PRO-10 is equipped with a pretreatment auxiliary switch that works in conjunction with the Whole House Revere Osmosis System. The pre-treatment lockout circuit can be used to shut down the RO when the water softener is regenerating - this prevents untreated dirty water from entering the RO system while the softener is regenerating
|
Protect Your Whole House
Reverse Osmosis Investment!
Remove hard water, rust, iron, manganese,
& hydrogen
sulfide gas odors before
your RO system. |
 Part #: RainDance PRO-125-10 Special Package Price: $895.00 Free Shipping Within The Continental US *Online Package Price when purchased with any Whole House RO Package! |

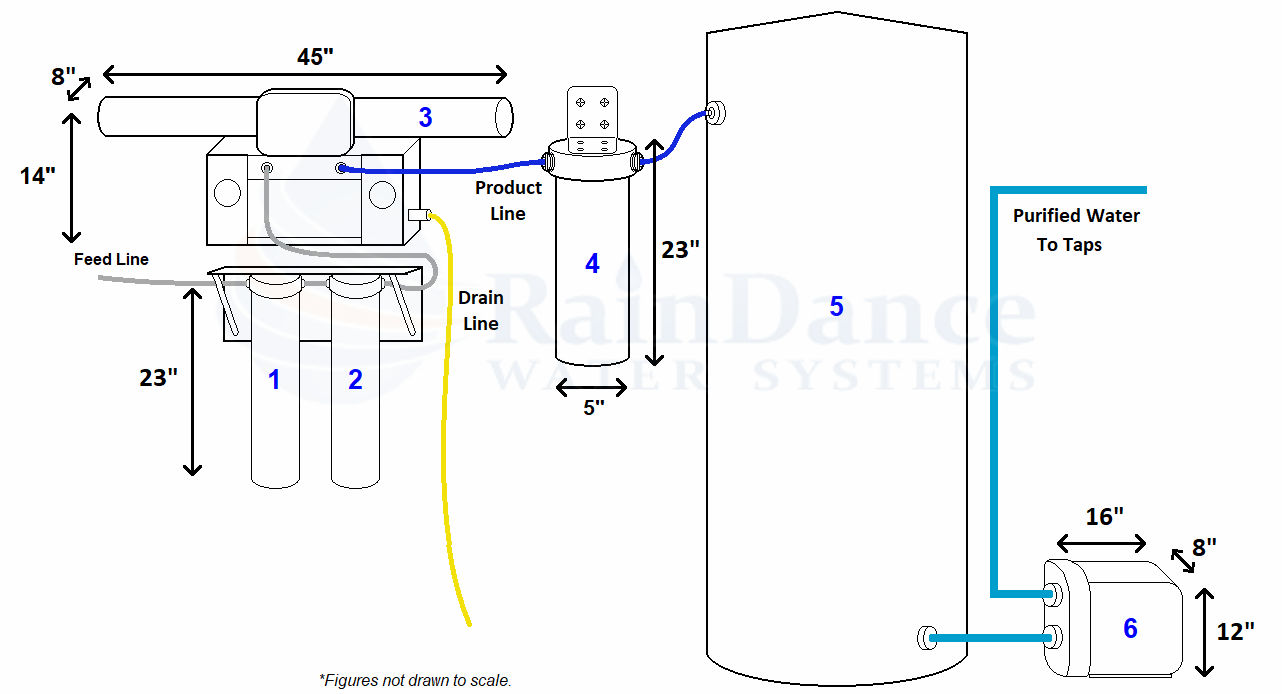

SIMPLE OPERATION: Quick Guide On How Our Whole House RO Works: pressurized water from your city treated or well water source enters the attached dual prefilter cartridge system. Then this pre-filtered water enters the TSM RO water purification system. This RO water then enters the pH neutralizer / remineralizer then begins to fill the near-by storage tank. The RO water will continue to fill the storage tank until the included tank float switch closes and shuts the entire system off. When there is a demand for water the re-pressure delivery pump is activated and draws RO water from the storage tank to your taps. If enough water is used to the point where the float switch is reopened, the RO system is automatically reactivated and begins to replace the RO water in the tank that has been depleted.
What does the Electronic RO Control Panel do and why is it important?
A: The Electronic Control Panel with function indicators provides hands-free and worry-free operation of several functions of the RO system. The basic RO functions include the "feed pressure switch" and "tank float switch" which regulates the system operating. The "feed pressure switch" ensures that your incoming water pressure is high enough for the RO system to operate (typically above 25psi). The "tank float switch" tells the RO system to shut down or start up based on your storage tank's water level. These basic functions are built into the RO control panel for smarter regulation and eliminates external switches.
A bonus feature included in our Electronic RO Control Panel is automatic membrane flushing. Most whole house/light commercial RO systems on the market today do not provide a membrane flush, which helps extend the life of the membrane by removing the concentrate brine (extremely salty water expelled by the membrane) sitting on the surface. Our whole house and light commercial RO systems included a manual membrane flush that allowed the user to flush the membrane as they wanted to. With this Electronic RO Control Panel, our customers no longer need to worry about remembering to flush the membrane constantly; this control panel automatically activates a membrane flush both at start up and shut down, ensuring longevity of your RO membrane.
The most important feature on this control panel, however, is the low pressure shutdown. Both public city water users and private well water users can suffer from periods of low pressure which can have a great negative affect on any RO system. If you experience a period of low pressure, a standard RO system would cycle on and off until the pressure is regulated. This can cause wear and irreversible damage to the RO pump motor and external feed pressure switch, resulting in costly and labor-intensive repair. Our RO control panel prevents this from happening by automatically shutting down the RO system if your feed pressure remains low for an extended period of time.
An optional feature on our RO control panel is pretreatment lockout. When pretreatment is needed to protect the RO system, a backwashing filter or water softener is used. When these pretreatment systems shut down to clean themselves, they allow unfiltered water to pass by the system and get into the RO if it's running at this time. To prevent possible exposure to unfiltered water a pretreatment lockout switch can be used to shut down the RO system when the water softener or filter is regenerating. Once the pretreatment system is finished regenerating, the switch will reactivate the RO system again. Both the RO system and the pretreatment system will need to be specially fitted with pretreatment lockout. This option is included free of charge when you add any of our pretreatment water softeners, iron filters, or backwashing systems to your whole house RO system!
Each function of the control panel is displayed with varying indicator lights to let you know how the system is running. You won't have to wait until it's too late and there is no water when you turn on a tap. Our Electronic RO Control Panel prevents potential RO malfunctions from happening and allows you to catch the culprit in time, before it has a chance to harm your system. This fully automated control is a must-have for any home owner that wants a hassle-free solution to many water problems.
The RainDance Water Systems Customer Service Mission Statement:
*Capacity production rate is based on input water temperature of 25 C (77 F). If your water is colder production will be lower.
